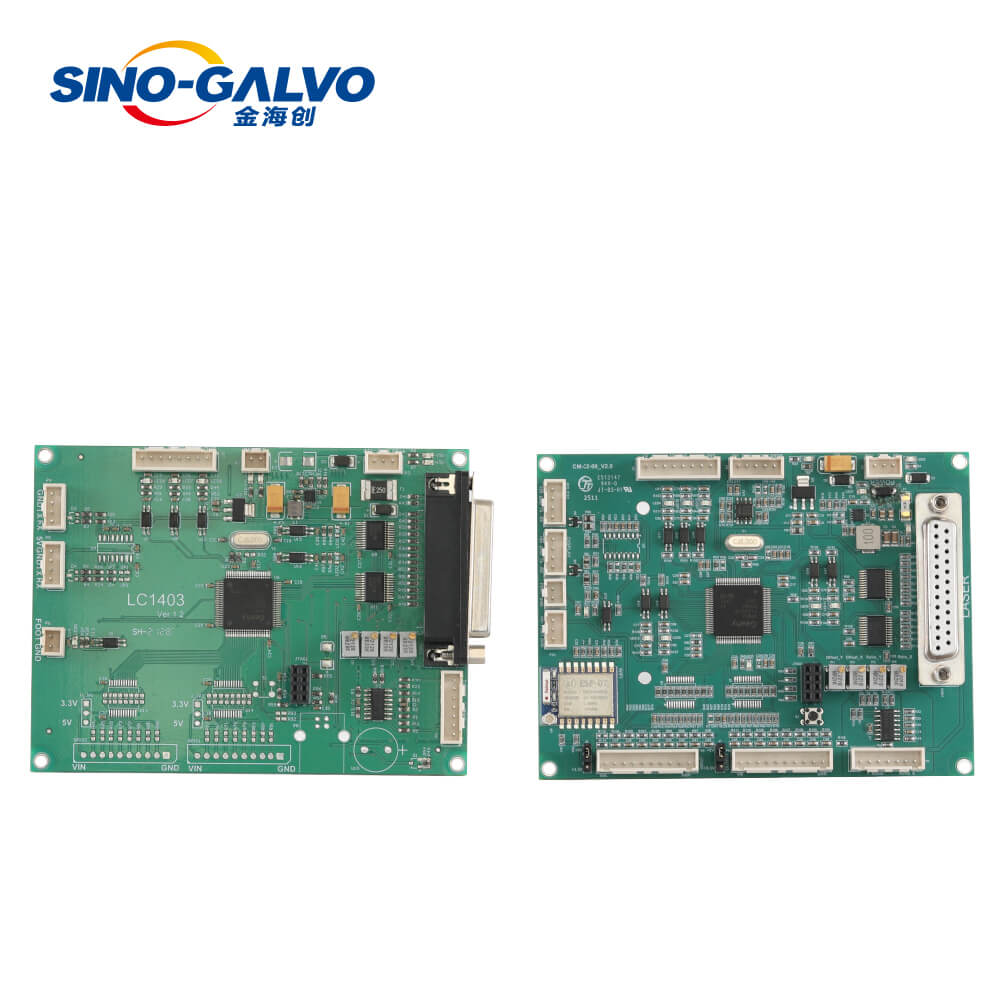

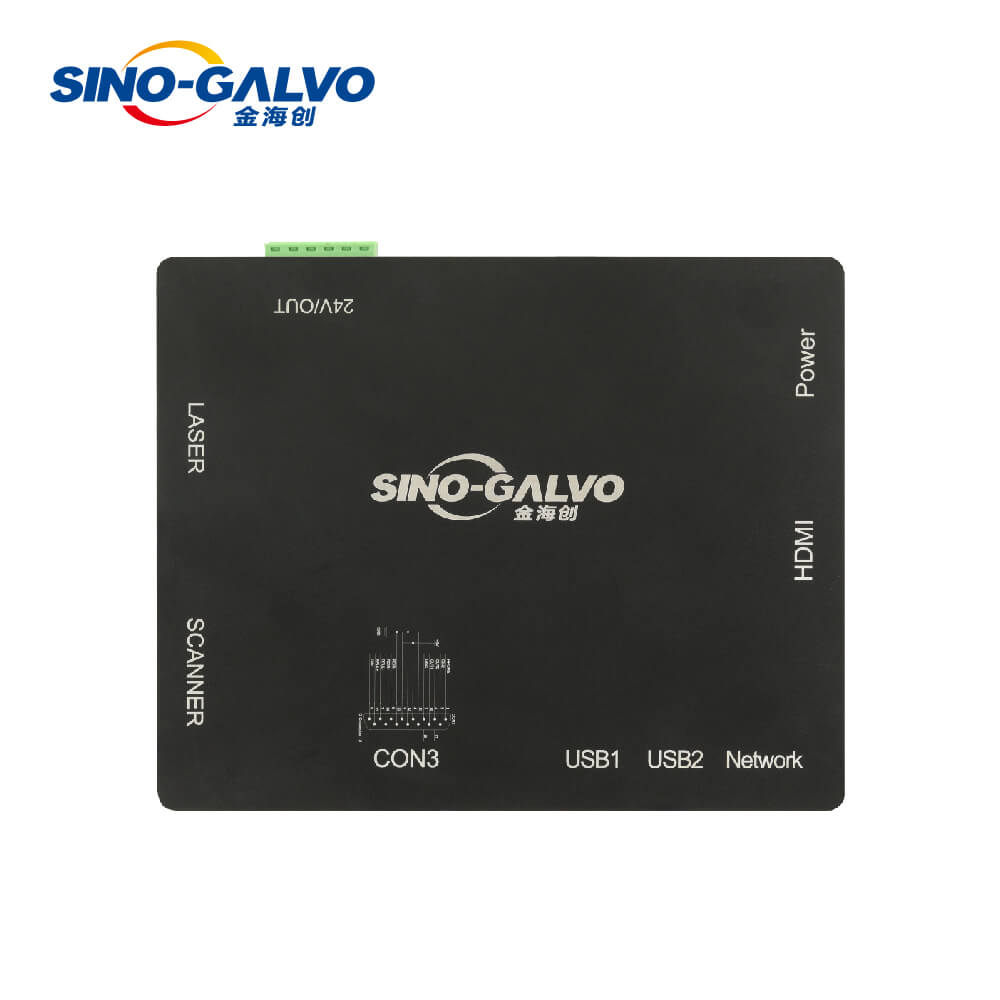

Laser Marking Control Board For Laser Engraving Marking
- 5 models for you to compare and choose;
- Multiple reserved I/O ports, providing greater DIY flexibility;
- Equipped with a higher-performance control chip for faster system operation.
Laser Marking Control Board For Laser Engraving Marking
- 5 models for you to compare and choose;
- Multiple reserved I/O ports, providing greater DIY flexibility;
- Equipped with a higher-performance control chip for faster system operation.
Product Features
Product Features
Sino-Galvo Laser Marking Control Board Comparison
| Hardware | CM-D3-00 | CM-D8-00 | CM-D7-00 | CM-D9-00 | CSG9310 |
| Connection | USB | USB | USB/WIFI | USB/WIFI | Net gape |
| Board Expansion Axis | 2 | 0 | 2 | 2 | 4 |
| Software | eMarking | ||||
| Uniform marking | √ | ||||
| Protocol | XY2-100 | ||||
| Laser | Support various mainstream laser types | ||||
| High-precision calibration | ✔ | ||||
| TCP/IP remote control | ✔ | ||||
| Visual Position | ✔ | ||||
| Secondary development | ✔ | ||||
| Cross-system support | ✔ | ||||
| Function customization | ✔ | ||||
| Auto-focusing | ⭕ | ⭕ | ✔ | ⭕ | ⭕ |
| Segmentation marking | ✔ | ⭕ | ✔ | ✔ | ✔ |
| Rotary marking | ✔ | ⭕ | ✔ | ✔ | ✔ |
| Rotary segmentation marking | ⭕ | ⭕ | ⭕ | ✔ | ⭕ |
| Continuous rotary marking | ⭕ | ⭕ | ⭕ | ✔ | ⭕ |
| 2D engraving – deep, relief, inner engraving | ✔ | ⭕ | ✔ | ✔ | ✔ |
| 3D engraving – deep, relief, inner engraving | ✔ | ⭕ | ✔ | ✔ | ✔ |
| Large field working | ✔ | ⭕ | ✔ | ✔ | ✔ |
| 3D Marking-Projection / Coated | ✔ | ⭕ | ✔ | ✔ | ✔ |
| Laser status monitoring | ⭕ | ⭕ | ✔ | ✔ | ⭕ |
| Dual-light-source control | ⭕ | ⭕ | ✔ | ✔ | ⭕ |
Software Parameters
| Laser | Supporting CO2, YAG, FIBER, SPI, etc. The software can adjust parameters such as current, pulse frequency, duty cycle, etc. |
| Preview | Red light |
| Calibration Method | 3D correction, traditional trapezoidal correction, barrel-shaped correction and parallelogram correction can all yield extremely accurate correction results. |
| Fill Modes | Background filling, circular filling, arbitrary angle filling, cross filling. Margins, borders and spacing can be adjusted. |
| Processing function | Large-format dynamic focusing, multi-channel expansion axis, estimated processing time, ultra-fast point-like two-dimensional barcode marking, uniform filling function |
| Element editing | Drawing/Editing of any shape, splitting/combining, grouping/dissolving, canceling/restoring, aligning, automatic curve connection, and so on. |
| Input Font | Supports True Type fonts, single-line fonts, and SHX. |
| Multi-layer processing parameters | Supports 16-layer processing parameters, enabling easy implementation of multi-parameter marking |
| Barcode and QR code | Code39、EAN、PDF417、DATAMATRIX、QR,etc |
| 3D Model File | STL |
| Vector file | PLT、DXF、SVG |
| Bitmap file | BMP、JPG、JPEG、PNG |
| Variable text | Fixed text, date, time, keyboard input, number skipping, list files, support for EXCEL tables, TXT files, network communication |
| Language | Built-in Chinese and English, and other languages can be customized. |
| Correction of multi-layer XY plane | Support, significantly improve the XY plane correction accuracy of 3D correction |

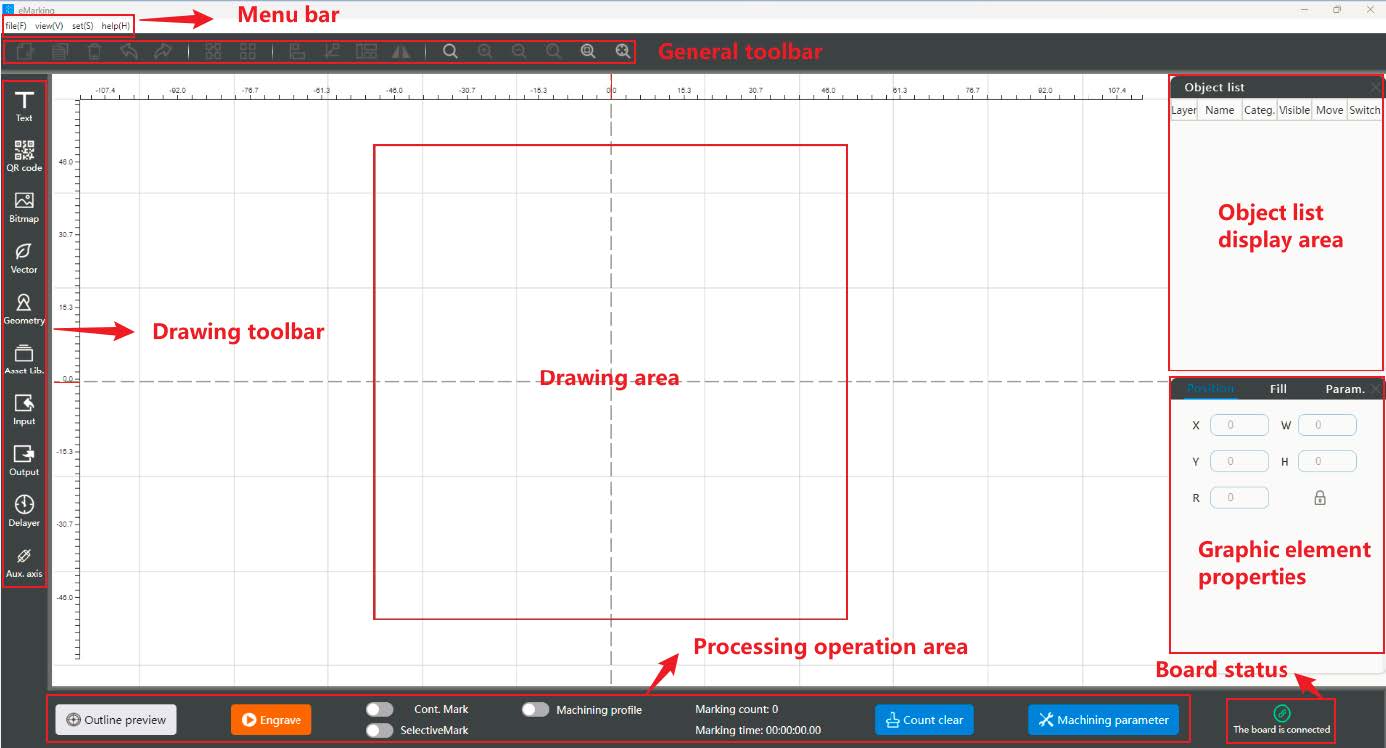

Software Interface
