Spring-Balanced CO₂ Laser Beauty Arm Precise Handpiece Control
- Effortless Handpiece Positioning: Smooth spring-balanced design for precise, fatigue-free operation.
- Flexible Treatment Angles: Multi-axis rotation allows easy adjustment to reach different treatment areas.
- Stable & Accurate: Maintains steady positioning for consistent laser delivery and treatment results.
Spring-Balanced CO₂ Laser Beauty Arm Precise Handpiece Control
- Effortless Handpiece Positioning: Smooth spring-balanced design for precise, fatigue-free operation.
- Flexible Treatment Angles: Multi-axis rotation allows easy adjustment to reach different treatment areas.
- Stable & Accurate: Maintains steady positioning for consistent laser delivery and treatment results.
Product Details
Product Details
Spring-Balanced CO2 Laser Beauty Arm Parameters
| Model | JHC-CO2-MNT | JHC-CO2-MNM |
| Style | Spring-Balanced Arm | Spring-Balanced Arm |
| Wavelength | 10.6μm | 10.6μm |
| Installation Interface | M17*0.75 | M20*1 / M17*0.75 |
| Max. Optical Aperture | φ12 | φ17 |
| Number of Joints | 7 | 7 |
| Expansion Length | 1573.5mm | 1458mm |
| Optical Path Deviation | ±0.3 | ±0.3 |
| Reflector Mirror Size | φ25.4*3, φ18*3 | φ25*3 |
| Handpiece | F=50mm, F=100mm optional | F=50mm, F=100mm optional |
| Note: Colors can be customized. | ||
CO2 Laser Beauty Arm Features
- Modular multi-section design allows flexible extension and adjustable working range for different treatment areas.
- Precision mechanical joints ensure smooth movement and accurate handpiece positioning during treatments.
- Lightweight structure provides durability while reducing operator effort.
- Standard mounting interfaces enable clean installation and easy system integration.

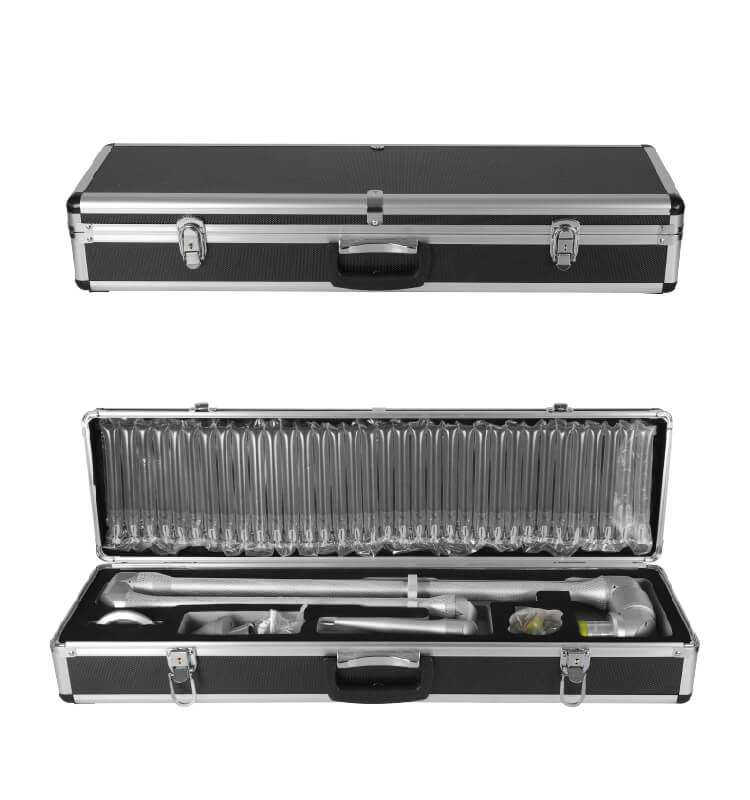

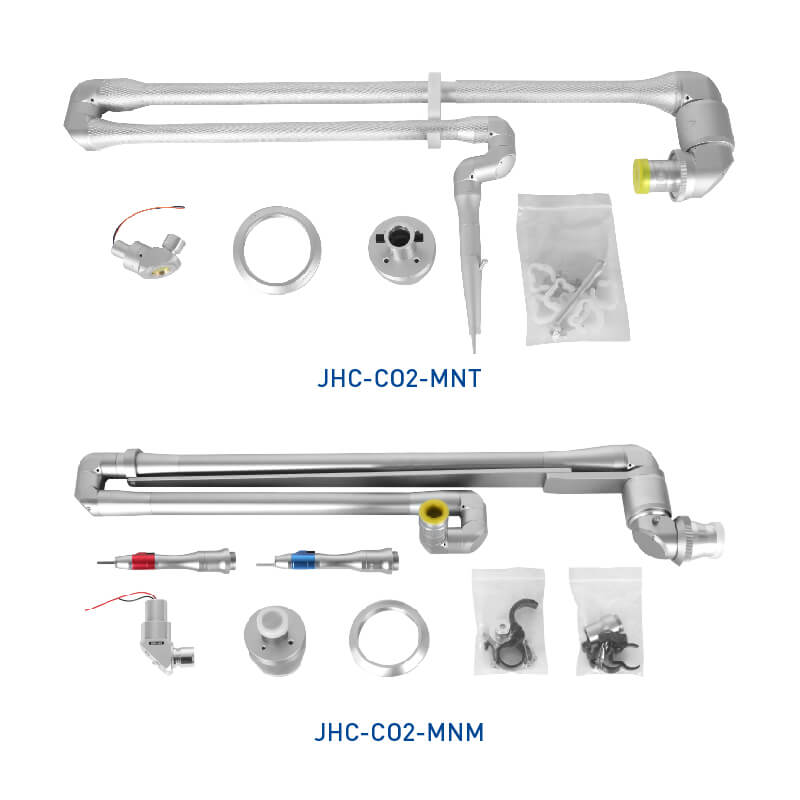

Product List and Packaging Images (Reference)
