What is a laser collimator ?

A laser collimator is an optical device used to align or shape a laser beam into a parallel beam of light, where the rays are parallel to each other and do not spread out or converge. This process, known as collimation, is essential for maintaining a focused and consistent beam over long distances.

Laser collimator how it works



The working principle of a laser collimator involves the use of optical elements, such as lenses or mirrors, to direct and shape the laser beam. Here’s a step-by-step explanation of how it works:

1.   Laser Source Emission

When a laser source emits light, the photons typically diverge, meaning the beam spreads out as it travels away from the source. This divergence can cause the beam to lose intensity and focus, making it less effective for precision tasks.

2.   Collimating Optics

The collimator includes an optical component, usually a lens or a mirror, positioned in the path of the divergent laser beam. The most common type of collimating optics is a collimating lens. This lens is designed to gather the spreading light and redirect it into a parallel path. The distance between the laser source and the collimating lens is crucial for achieving the desired collimation.

3.   Beam Alignment

The lens or mirror adjusts the angles of the diverging light rays so that they exit the collimator parallel to each other. This parallel alignment reduces the spread of the beam and allows it to travel in a straight line without significant divergence over a specified distance.

4.   Fine-Tuning

Some laser collimators come with adjustable features, allowing the user to fine-tune the position or focus of the collimating lens. This adjustment can optimize the beam’s parallelism and focus, which is especially useful in precision applications.

5.   Output

The result is a well-collimated laser beam, which means that the beam’s width remains nearly constant over the desired range. This beam is more focused and can maintain its intensity, making it ideal for tasks requiring precision, such as cutting, engraving, or optical alignment.

Laser collimator’ Components



A laser collimator can be simplified into a few essential components that work together to transform a divergent laser beam into a parallel one. Here are the key simple components:

1. Laser Source

  • Description: The starting point of the laser beam, which could be a laser diode or another type of laser.
  • Function: Emits the initial laser beam that needs to be collimated.

2. Collimating Lens

  • Description: A single optical lens, typically a convex lens, that straightens the diverging beam into a parallel one.
  • Function: The core component responsible for aligning the light rays to form a parallel beam.

3. Lens Holder or Mount

  • Description: A mechanical structure that holds the collimating lens in the correct position relative to the laser source.
  • Function: Ensures stability and correct alignment of the lens with respect to the laser source.

4. Housing or Tube

  • Description: A cylindrical or rectangular structure that encloses the laser source and the collimating lens.
  • Function: Provides a stable environment, keeps the components aligned, and protects the optics from dust and damage.

These basic components are often sufficient for simple applications, such as basic optical alignment, laser pointers, and low-power laser systems. More complex collimators may include additional components for fine-tuning and enhanced performance, but these four are the fundamental building blocks of any laser collimator.

Types of Laser Collimators



1.   Fixed Collimators

These have a set focal length and are used for applications where the collimation distance remains constant.

2.   Adjustable Collimators

These allow users to fine-tune the focus and alignment of the laser beam, making them suitable for applications with varying requirements.

Applications of laser collimators



Laser collimators have a wide range of applications across various industries due to their ability to produce parallel and well-focused laser beams. Here are some of the main applications of laser collimators:

1. Optical Alignment

Description: Laser collimators are commonly used for aligning optical systems such as telescopes, microscopes, and other precision instruments.

Application: They help ensure that the optical path is properly aligned, resulting in clear and accurate imaging. For example, in telescopes, a laser collimator ensures that the mirrors or lenses are aligned, providing better focus and image quality.

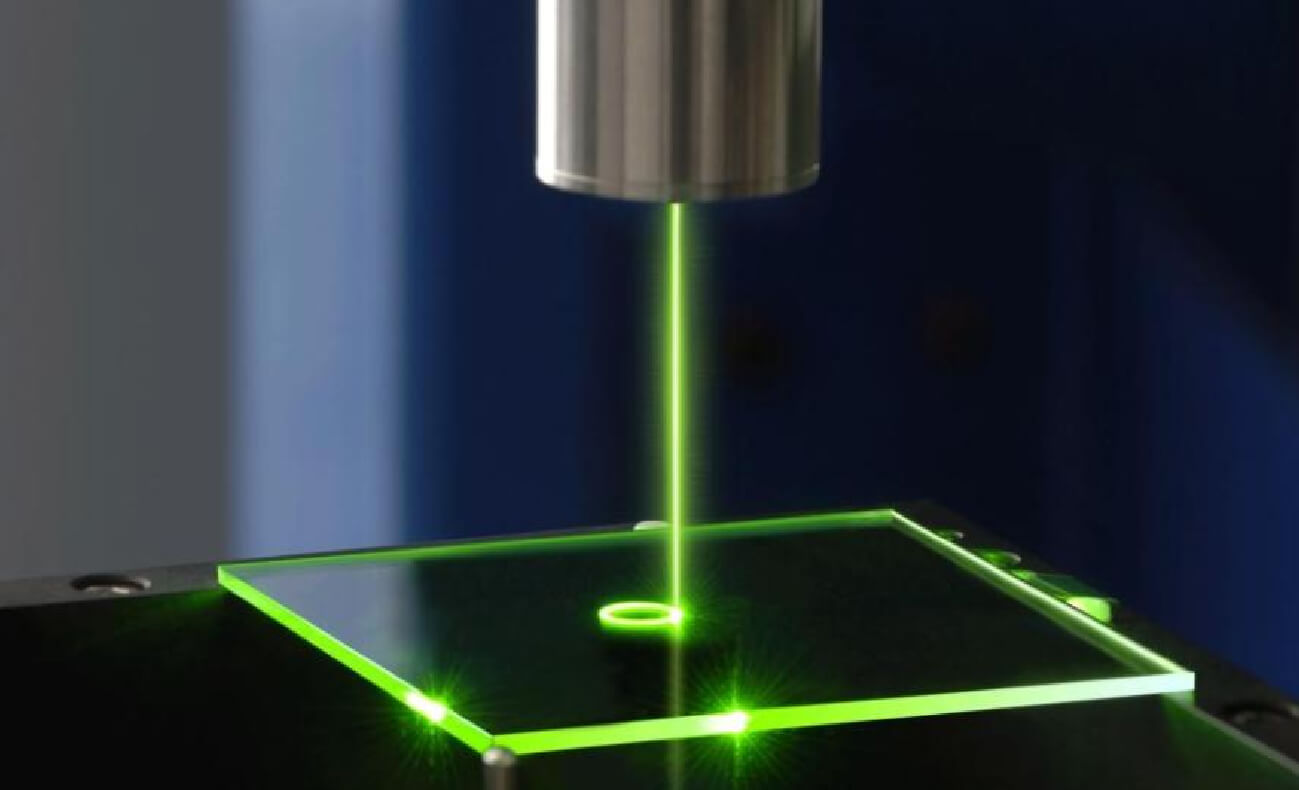

2. Laser Machining and Cutting

Description: In industrial applications, laser collimators are crucial for processes like cutting, welding, engraving, and drilling.

Application: A well-collimated beam maintains its focus and intensity over longer distances, enabling precise and efficient material processing. This is especially important in CNC laser cutting machines, where the accuracy of the cut depends on the beam’s collimation.

3. Medical Applications

Description: Laser collimators are used in various medical devices for diagnostics and treatment, including laser surgery and ophthalmic equipment.

Application: In eye surgery, for example, a collimated laser beam is used to precisely target tissues without damaging surrounding areas. In diagnostic devices, collimators help direct the laser beam for accurate measurements.

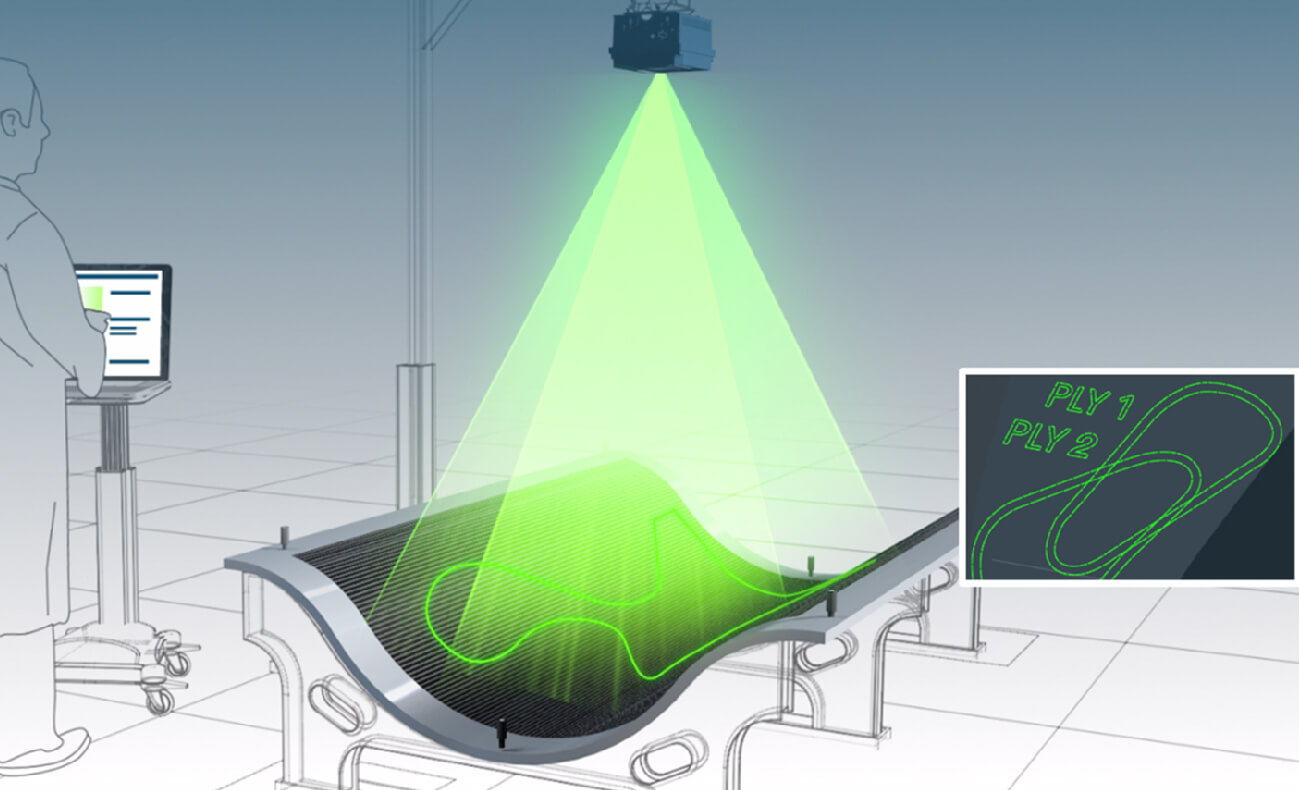

4. Laser Scanning and Imaging Systems

Description: In laser scanning and imaging systems, collimated beams are used to scan objects or areas accurately.

Application: Laser collimators are used in devices like LiDAR (Light Detection and Ranging) for mapping and autonomous vehicle navigation, where precise beam direction is needed for accurate measurements.

Conclusion



Laser collimators are crucial components in many optical and laser systems, ensuring that laser beams maintain their desired characteristics over long distances and diverse applications. Whether used in manufacturing, research, or communication, collimators play a vital role in enhancing the performance and precision of laser technologies.
